    GUIHE factory petrol station underground tank fuel level monitor ATG automatic tank gauge

    Ask Lasest Price
    Brand Name : GUIHE
    Model Number : SYW-A +TCM-1
    Certification : CE ,ISO
    Price : 1-100USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000pcs/month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    GUIHE factory petrol station underground tank fuel level monitor ATG automatic tank gauge

    GUIHE factory petrol station underground tank fuel level monitor ATG automatic tank gauge

    1. high accuracy guihe fuel tank level monitor system ATG automatic tank gauge

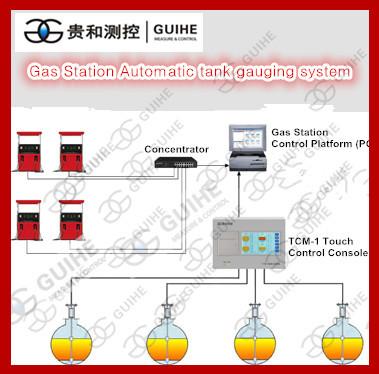

    2. automatic tank gauge include SYW-A magnetostrictive probe + TCM-1 touch control console +PC software

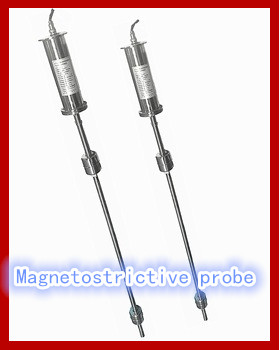

    3. automatic tank gauge include SYW-A magnetostrictive probe detail :


    A,The probe consist of:

    Fully enclosed magnetostrictive probe.

    Electronic Pod using for data measuring and transforming.

    Floater made according to the product.

    B,Features:

    Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC

    Accuracy: level accuracy is ±0.3mm

    Stability: strong anti-jamming ability

    Efficiency: less than 1 second to test one tank.

    C,Probe Performance

    ItemSYW-A
    PurposeTo measure product level, water level and temperature
    Titles of mediumGasoline, diesel, kerosene, ethanol , water etc.
    State of mediumLiquid
    Explosion-proof gradeExiaIIBT4 (Intrinsically safe)
    Pressure range-0.02Mpa~0.6Mpa
    CertificatePCEC Conformity Certificate of Explosion-proof / Permit of Manufacture Measuring Instruments
    Temperature-40℃~70℃
    Product Level Accuracy±0.3mm
    Water Level Accuracy±0.3mm
    Temperature Accuracy±0.2℃
    Height Resolution0.023mm
    Repeatability±0.1mm
    Environmental Temperature EffectError<0.2mm
    Vibration EffectError<0.5mm
    Lowest Product Inactive Zone2.5'' floater-180mm
    Lowest Water Inactive Zone2.5'' floater-25mm
    Measured VariableProduct level, interface level and temperature of 5 sensors and average temperature
    Probe Length600~3500mm
    Method of CommunicationRS-485
    Probe Material1Cr18Ni9Ti
    Power Supply+24~26VDC
    Protection Class of Probe CanisterIP67
    Max Communication Distance1200m

    4. automatic tank gauge include TCM-1 touch control console


    TCM-1 Touch Control Console

    Specification

    ItemsPerformance index
    L×W×H400mm×300mm×200mm
    Supply VoltageAC 120V~265V 50Hz
    Ambient Temperature-10℃~+60℃
    Ambient Humidity20%~85%
    Screen Dimension7 Inch
    Display ModeEnglish,graphic,LCD
    Monitor up to1~16
    Transmission Mode with Central Control SystemRS-232 (within 15m)
    Transmission Mode with Magnetostrictive probeRS-485 (within 1200m)

    The main functions is as follows:

    *Authority Management: It’s only need a password to enter the Parameter Setup and Manual Control, others free operation.

    *Parameter Setup: Customers can setup parameters about tank, time and tank volume table.

    *Auto-monitoring: Monitoring up 1~12 (max 16) tanks, display all the tank real time information.

    *Automatic Gauge: Display fuel level, density, temperature, inventory and ullage, monitor the fuel delivery condition of real time. Display dynamically the change of fuel level with graphic and scale.

    *Inventory Report(Previous Records): Users can visit /print/copy the inventory at any moment

    *Tank Volume Table Edition: Users can input or modify the tank volume table from computer.

    *Alarm: High fuel level alarm, low fuel level alarm, fuel temperature upper limit alarm, fuel temperature lower limit alarm. With audible and visual alarm signal, audible alarm can be removed. It can connect with an outside explosion-proof ringer to avoid the fuel spilled.

    *Parameter Setup: Users can setup the tank parameter, time parameter, keyboard size and interval of inventory records.

    *Shift Exchange: Click the working team you want.

    *Data Export: Export tank information toU disk.


    5. automatic tank gauge Picture


    GUIHE factory petrol station underground tank fuel level monitor ATG automatic tank gauge


    Quality GUIHE factory petrol station underground tank fuel level monitor ATG automatic tank gauge for sale
